This repetitive work not only slows down the design cycle but also introduces a risk of error, where a single miscalculation can lead to costly compliance or manufacturing issues.

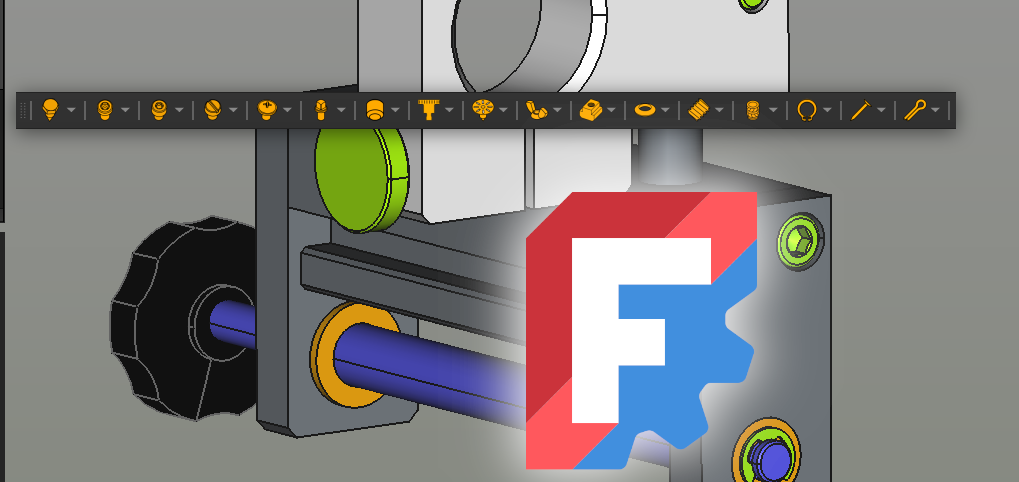

The Game-Changing Solution: FreeCAD's Fasteners Workbench
For engineers and designers seeking efficiency without sacrificing precision, FreeCAD's Fasteners Workbench emerges as a transformative tool. This specialized add-on is engineered to streamline the entire fastener management process, turning a hours-long chore into a task accomplished with speed and confidence.
How It Revolutionizes Your Design Process:
Extensive Standardized Library: Access a comprehensive, built-in library of standard inch and metric hardware. Instantly populate your assembly with a full spectrum of components—from socket head cap screws and lock nuts to washers and threaded inserts—without ever leaving your design environment.
Intelligent Association & Placement: The workbench does more than just insert parts. It intelligently matches and places associated components together. Select a bolt, and the tool can automatically suggest and position the appropriate nut and washer, maintaining correct spatial relationships and saving countless manual alignments.

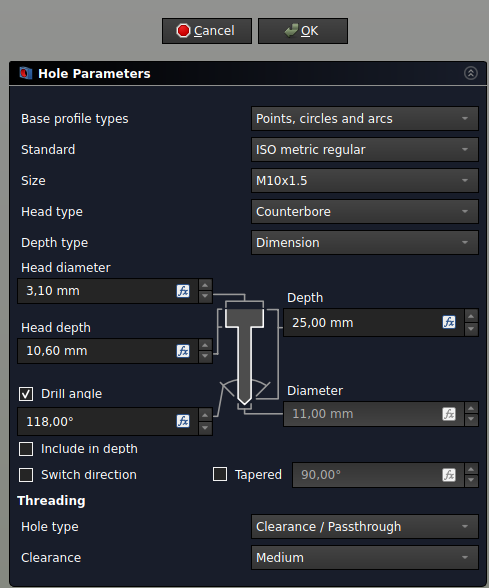

Seamless Integration with Part Design: While the Fasteners Workbench provides the hardware, it works hand-in-hand with FreeCAD's robust Part Design tools for creating the precise geometry. You generate the holes, counterbores, and countersinks using dedicated features, while the workbench ensures you have the correct, standards-compliant fastener specified and ready for that feature. This synergy guarantees both design intent and manufacturability.
Dynamic Design Adaptability: In a real-world design process, changes are inevitable. The Fasteners Workbench builds in resilience. Update fasteners across your entire assembly with a single command when your design evolves, eliminating the need for painstaking, one-by-one replacements.
Automated Specification Management: Beyond placement, the tool acts as a management hub. It helps track specifications, quantities, and bills of materials (BOM). Crucially, it automatically accounts for real-world factors like tool clearance, ensuring your virtual assembly reflects practical assembly considerations.
From Tedious Chore to Strategic Advantage
The impact is profound. What once consumed hours can now be accomplished in minutes, freeing up valuable designer time for innovation and complex problem-solving. Every fastener is verified for correctness and compliance, significantly reducing prototyping errors.
Furthermore, the workbench is not a closed system. Designers can expand the library with custom parts and proprietary part numbers, tailoring it to specific company standards or unique project requirements.
Ready to Master This Power?
This is just one example of how FreeCAD empowers designers to work smarter, not harder. The real magic happens when you integrate these tools into your own projects.
Want to go from curious to proficient?
Get Trained: Join a structured online course or community workshop to accelerate your FreeCAD skills. Learn not just the "how," but the "why" behind efficient parametric design.
Start a Project: The best way to learn is by doing. Launch your own modeling project—redesign a household item, plan a custom furniture piece, or develop a mechanical prototype. Apply the Fasteners Workbench and other tools to solve real problems.
